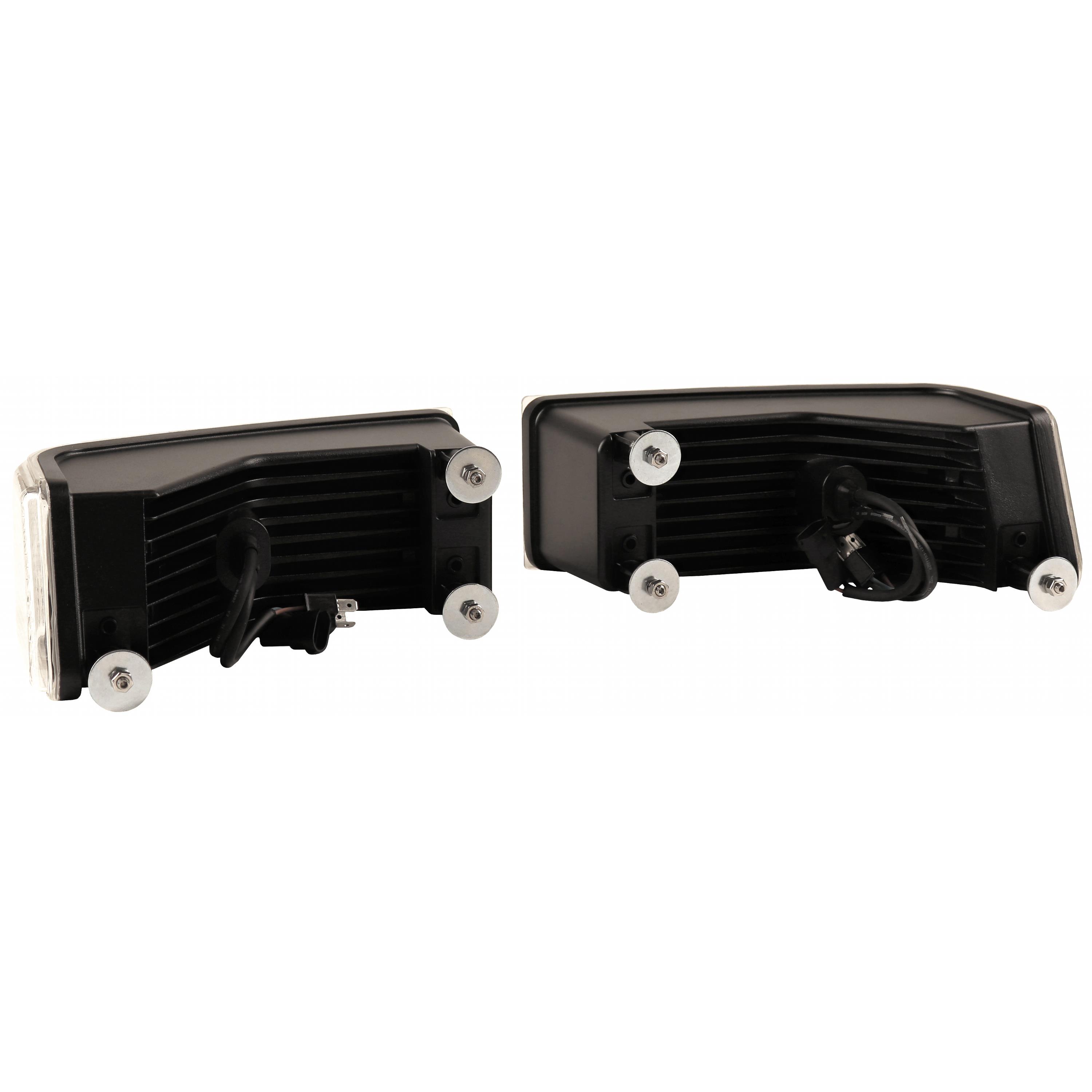

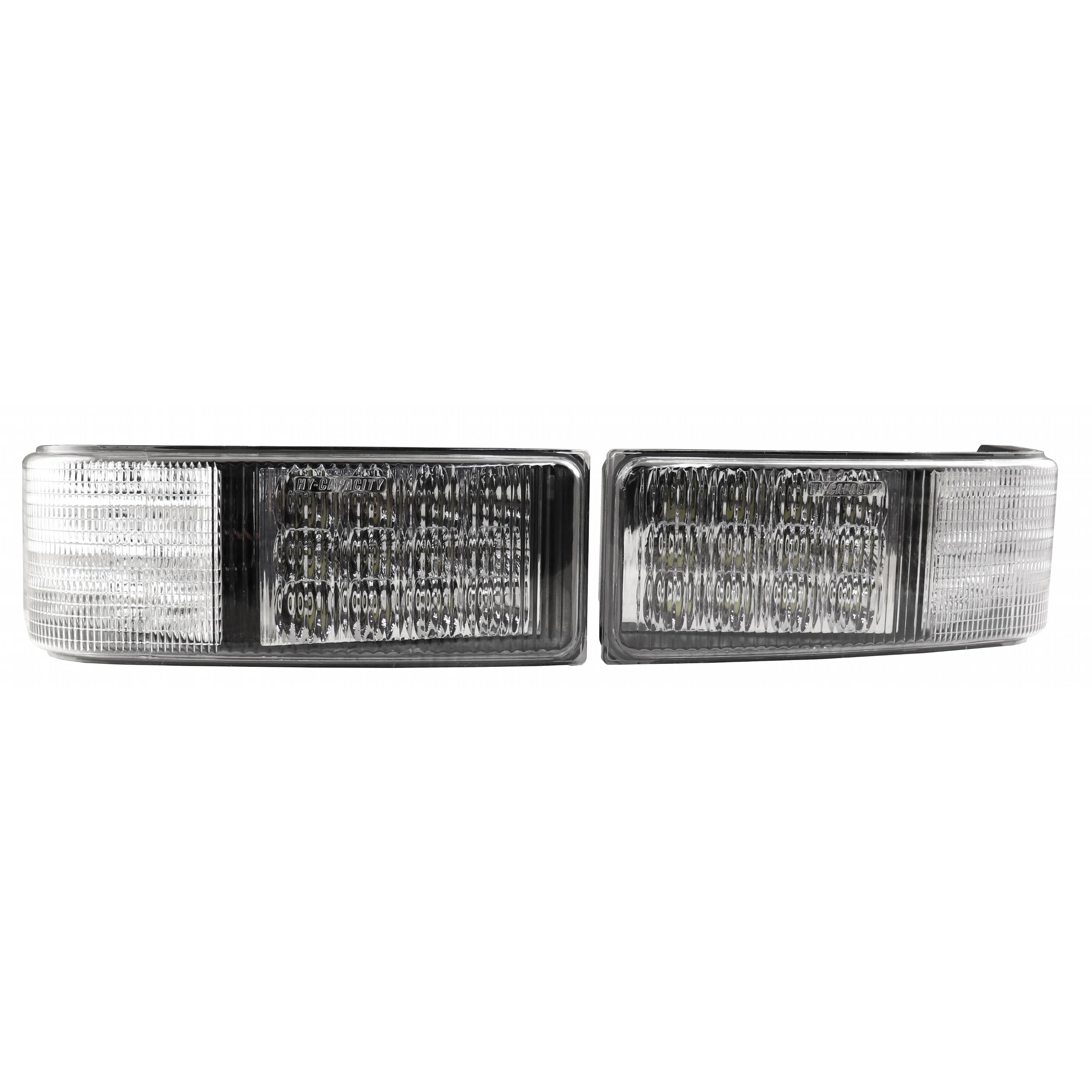

HA232447 KIT Headlight set

No need to stand on your head for installation. The studs are already in the bracket for an easy one-person installation! These lamps are guaranteed to mount flush for a clean, consistent look. They have been designed with larger cooling fins to dissipate heat & will provide you triple the light output.

Install instructions

Product Notes

• Type: CREE LED
• Beam Style: Hi-Lo Beam
• Raw Lumens: 9000
• Shape: Corner
• Dimensions: 10.25" x 4.25"
• Watts: 120 Total
• DC Volts: 9-32V
• Amps (@12V): 10
• Plug & Play Connection

Cross Reference Numbers : 232448A1, 232448A2, 232449A1, 232449A2, 232450A2, 232451A2, 232453A2, 44995026, 44995027, 5091965, 5091966, 5091967, 5091968, HA232448, HA232449

Fits :

Sprayer: 4020 Titan, 4030 Titan Tier 4, 4420 Patriot, 4520 Titan, 4530 Titan Tier 4, SPX4410 Patriot

Spreader: FLX 4010, FLX 4510

Tractor: 100 Maxxum Limited & Value Models Tier 3, w/Chassis # C6556, 115 Maxxum Limited, Pro & Value Models Tier 3 w/Chassis # 6556, 120 Maxxum EP & CVT Models Tier 4 w/ Variant Code 330698107, Pro Models Tier 3 w/Chassis # 6556, 125 Maxxum Limited, Pro & Value Models Tier 3 w/Chassis # 6556, 130 Maxxum EP & CVT Models Tier 4 w/Variant Code 330698107, Pro Models Tier 3 w/Chassis # 6556, 140 Maxxum Limited & Pro Models Tier 3 w/Chassis # 6556,

45A Farmall, 55A Farmall, 65A Farmall, 65C Farmall, 75A Farmall, 75C Farmall, 85C Farmall w/ Cab, 85U Farmall, 95C Farmall w/ Cab, 95U Farmall, 110A Farmall, 120A Farmall, 125A Farmall, 140A Farmall,

Late models  CX70, CX80, CX90, CX100

JX100U, JX1060C w/ Cab, JX1070C w/ Cab, JX1070U, JX1075C w/ Cab, JX1080U, JX1085C w/ Cab, JX1090U, JX1095C w/ Cab, JX1100U, JX70U, JX80U, JX90U,

MX80C, MX90C,  MX100C,

MXM120, MXM130, MXM140, MXM155, MXM175, MXM190, MXU100, MXU110, MXU115, MXU125, MXU130, MXU135

 Note: Some models will have wiring for both Halogen and HID style lamps. Be sure to use the proper connector to power your Hy-Cap LED Lamp. If replacing an HID lamp, also remove the ballast. The connector leading to the ballast may be used to power the Hy-Cap LED

1. Raise the hood and remove the sliding clips that hold the lamp in place

2. Remove the lamp from the bezel

3. Disconnect wiring connectors

4. Connect wiring of of new lamp to the connectors on the machine. (See note above)

5. Place new Hy-Cap Lamp into bezel. (Your new Hy-Cap lamp has shoulder washers that will center the lamp in the bezel. Confirm that the washers have centered in the mount holes before proceeding

6. Install flat washers, lock washers and nuts and secure
