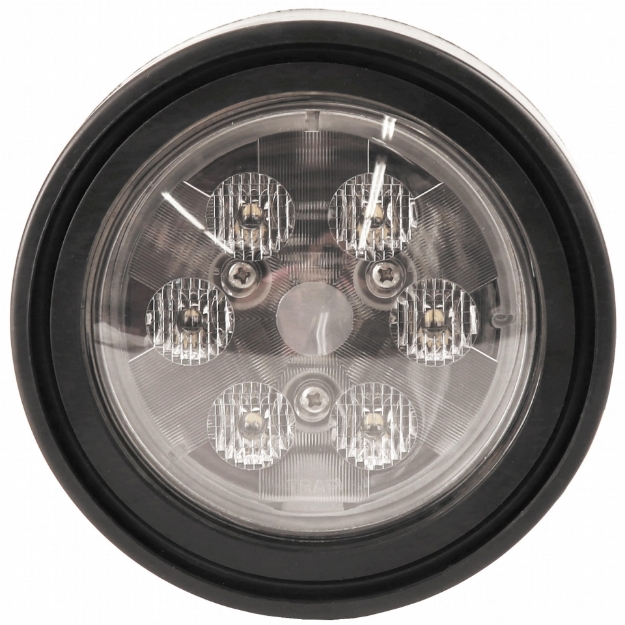

PAR36 LED Trapezoid Beam Bulb w/ Steel Housing, 1260 Lumens

Be the first to review this product

Upgrading to this PAR36 LED Trapezoid Beam Bulb is quick and easy. Includes the steel housing and rubber grommet. OE wiring fits directly on to the lamp spades. Change the lights on your tractor to LED- longer lasting, BRIGHTER, and runs COOLER than halogen! Trapezoid beam is designed to give a more narrow pattern for longer visibility.

		Durable & Strong: Polycarbonate Lens + Aluminum Housing
		Waterproof + Dustproof
		Stainless Steel Hardware Included
		LED’s Use Less Energy + Last 5x Longer
		Backed By a 1 Year Warranty
		Plug + Play Connection
		Fitted + Field Tested In Humboldt, Iowa

SKU: 8302075

Vendor: Granit

$48.35

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Amps (@12V)	1.5
Beam Style	Trapezoid
Dimensions	4.5"
Diode Manufacturer	CREE
Lens Material	Polycarbonate
Location	Cab Front, Cab Rear, Fender Front, Grille
Lumen Range	1000 - 1999
New/Reman	New
Raw Lumens	1260
Shape	Round
Sold As	Each
Volts	10-30V
Warranty	1 Year
Waterproof Rating	IP67
Watts	18

Products specifications

Attribute name	Attribute value
Amps (@12V)	1.5
Beam Style	Trapezoid
Dimensions	4.5"
Diode Manufacturer	CREE
Lens Material	Polycarbonate
Location	Cab Front, Cab Rear, Fender Front, Grille
Lumen Range	1000 - 1999
New/Reman	New
Raw Lumens	1260
Shape	Round
Sold As	Each
Volts	10-30V
Warranty	1 Year
Waterproof Rating	IP67
Watts	18

Product tags

Use On Below Models (Click to expand)

Allis Chalmers

Motor Grader: M60 Fender M70 Fender

Tractor: 170 Fender 175 Fender 180 Prior to S/N 12800, Fender 185 Fender 190 Fender 190XT Fender 190XT III Fender 200 Fender 210 Fender 220 Fender 220FWA Fender 6040 Fender 6060 Fender 6080 Fender 7000 Fender 7010 Fender 7020 Fender 7040 Fender 7045 Fender 7050 Fender 7060 Fender 7080 Fender

Case

Backhoe: 480B Fender 480C Fender 580B Fender 580C Fender

Combine: 1010 1060 660 960

Tractor: 1030 Fender 1070 Fender 1090 1170 Fender 1175 Fender 1270 Fender 1370 Fender 1470 Fender 1570 Fender 2470 2670 2870 430 470 530 570 630 730 Fender 770 Fender 830 Fender 870 Fender 930 Fender 930CK Fender 940 970 Fender

Case IH

Tractor: 395 495 695 895 995

Ford

Tractor: 230A Fender 231 Fender 2310 Fender 233 Fender 234 Fender 2600 Fender 2610 Fender 2810 Fender 2910 Fender 333 Fender 334 Fender 335 Fender 3600 Fender 3610 Fender 3910 Fender 4100 Fender 4110 Fender 4600 Fender 4610 Fender 5110 Fender 515 Fender 530A Fender 531 Fender 532 Fender 5600 Fender 5610 Fender 5700 Fender 6600 Fender 6610 Fender 6700 Fender 6710 Fender 7600 Fender 7610 Fender 7700 Fender 7710 Fender 8000 Fender 8210 Fender 8530 Fender 8630 Fender 8700 Fender 8730 Fender 8830 Fender 9000 Fender 9700 Fender TW10 Cab Rear, Mid-Body TW15 Cab Rear, Mid-Body TW20 Cab Rear, Mid-Body TW25 Cab Rear, Mid-Body TW30 Cab Rear, Mid-Body TW35 Cab Rear, Mid-Body TW5 Cab Rear, Mid-Body

Tractor Loader Backhoe: 535 Fender

Gleaner

Combine: R60 Stubble, Service, Unloading

International

Combine: 1420 Stubble, Service, Unloading 1440 Stubble, Service, Unloading 1460 Stubble, Service, Unloading 1470 Hillside Stubble, Service, Unloading 1480 Stubble, Service, Unloading

Cotton Harvester: 1400 Stubble, Service, Unloading

Tractor: 1026 Fender 1066 Fender 1086 Eff. S/N 30895 1206 Fender 1256 Fender 1456 Fender 1466 Fender 1468 Fender 1486 Eff. S/N 17123 1566 Fender 1586 Fender 1588 Fender 21026 Fender 21206 Fender 21256 Fender 21456 Fender 2504 Fender 2544 Fender 2656 Fender 2706 Fender 2756 Fender 2826 Fender 2856 Fender 3088 Fender 3288 Fender 3388 Fender 3488 Fender 3588 Fender 3688 Fender 3788 Fender 4366 Fender 4386 Fender 4568 Fender 4586 Fender 4786 Fender 504 Fender 5088 Fender 5288 Fender 544 Fender 5488 Fender 6388 Fender 656 Fender 6588 Fender 664 Fender 666 Fender 6788 Fender 686 Fender 706 Fender 7288 Fender 7488 Fender 756 Fender 786 Fender 806 Fender 826 Fender 856 Fender 886 Eff. S/N 13588 966 Fender 986 Eff. S/N 17756 Hydro 100 Fender Hydro 186 Fender Hydro 70 Fender Hydro 86 Fender

John Deere

Combine: 6620 6622 7720 8820

Compactor: 646 646B 646C

Cotton Picker: 9920 9930 9940 9950 9960

Cotton Stripper: 7440 7445

Crawler/Dozer: 450D 450E 455D 455E 550 550A 550B 555 555A 555B

Feller Buncher: 743 Cab, Fender 743A Cab, Fender

Forage Harvester: 5200 5400 5720 5730 5820 5830

Forklift: 380 480 480A 480B 480C

Loader Backhoe: 300B 302A 310 310A 310B 401B 401C 410 410B 415B 500 500A 500B Cab, Fender 500C 510 510B 515B 610B 700A Cab, Fender 710B 710C

Scraper: 760

Skid Steer Loader: 125 14 170 24 24A 3375 375 570 575 675 675B 70

Skidder: 340D 440 440A 440B 440C 440D 540 540A 540B 540D 548D 640 640D 648D 740 Cab, Fender 740A

Sprayer: 6000 Hi-Cycle 6100 6500 6600

Tractor: 1010 1020 Fender 1030 1040 1070 1120 1130 1140 1520 Fender 1530 Fender 1550 1630 1640 1750 1830 1840 Prior to S/N 429999 1850 1850N 1950 1950N 2010 Fender 2020 Fender 2030 Fender 2040 Eff. S/N 430000 2040S 2130 2140 Eff. S/N 430000 2150 2155 2250 2255 2350 Fender 2355 Fender 2355N 2440 Fender 2450 2510 Fender 2520 Fender 2550 Fender 2555 Fender 2630 Fender 2640 Fender 2650 2650N 2750 Fender 2755 Fender 2840 Fender 2850 2855N Fender 2940 Fender 2950 Fender 2955 Fender 3010 Fender 302 3020 Fender 3030 3050 3130 3350 4000 Eff. S/N 201000 401 4010 Fender 401D 4020 Eff. S/N 201000 4040 4040S 4050 420 4240 4240S 4250 430 4350 4440 4450 4520 Fender 4640 4840 5010 Fender 5020 Prior to S/N 024999 520 Fender 530 Fender 6030 Fender 620 Fender 630 Fender 655 670 720 Fender 730 Fender 755 756 770 790 820 830 855 870 8850 920 930 940 955 956 970

Wheel Loader: 444 444C 444CH 544 544A 544B 544C 644A 644B 644C

Windrower: 2270 2280 2320 2420 3430 3830 800 830

Massey Ferguson

Tractor: 1080 Fender 1085 Fender 1100 Fender 1105 Fender 1130 Fender 1135 Fender 1150 Fender 1155 Fender 135 w/ Flat Top Fender 150 Fender 1500 Fender 1505 Fender 165 Fender 175 Fender 180 Fender 1800 Fender 1805 Fender 235 w/ Flat Top Fender 245 w/ Flat Top Fender 255 w/ Flat Top Fender 2640 Fender 265 w/ Flat Top Fender 2675 Fender 2705 Fender 2745 Fender 275 w/ Flat Top Fender 2775 Fender 2805 Fender 285 w/ Flat Top Fender 3505 Fender 3525 Fender 3545 Fender MF30 Fender MF31 Fender

Minneapolis Moline

Tractor: A4T1400 Fender A4T1600 Fender G1000 Fender G1000 Vista Fender G1050 Fender G1350 Fender G1355 Fender G707 Fender G708 Fender G750 Fender G850 Fender G900 Fender G950 Fender G955 Fender Jet Star 3 Fender M670 Fender M670 Super Fender U302 Fender

Oliver

Tractor: 1550 Fender 1555 Fender 1600 Fender 1650 Fender 1655 Fender 1750 Fender 1755 Fender 1800 Eff. S/N 90525, Fender 1850 Eff. S/N 150421, Fender 1855 Fender 1870 Fender 1900 Fender 1950 Eff. S/N 150421, Fender 1950T Eff. S/N 194080, Fender 1955 Fender 2050 Eff. S/N 204001, Fender 2150 Eff. S/N 204001, Fender 2155 Fender 2255 Fender 2270 Fender 2655 Fender 770 Fender 880 Fender

White

Tractor: 2-105 Fender 2-135 Fender 2-150 Fender 2-155 Fender 2-62 Fender 2-70 Fender 2-78 Fender 2-85 Fender 4-150 Fender 4-175 Fender 4-180 Fender 4-210 Fender 4-225 Fender 4-270 Fender 4-78 Fender
