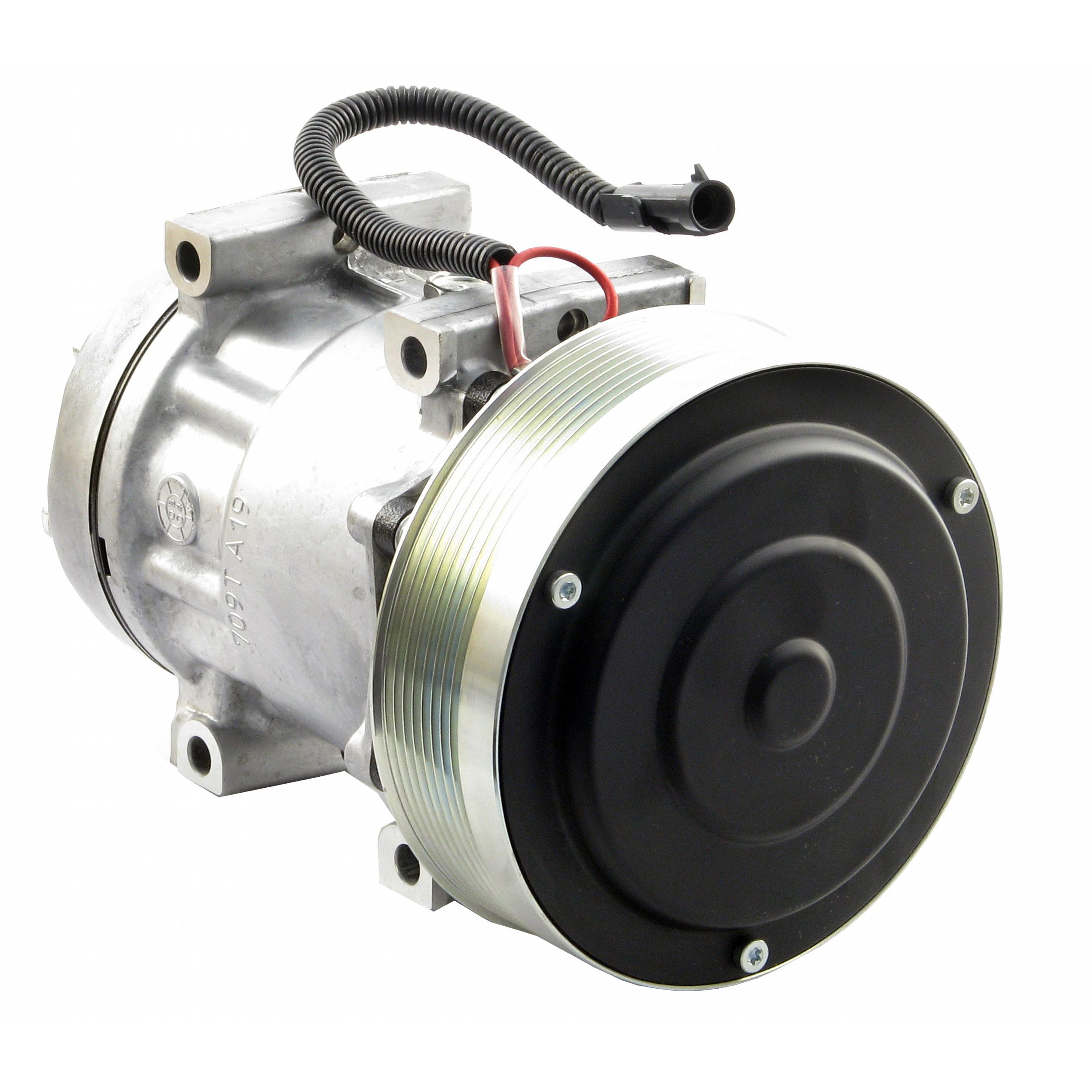

Picture of Sanden SD7H15 Compressor, w/ 8 Groove Clutch - New

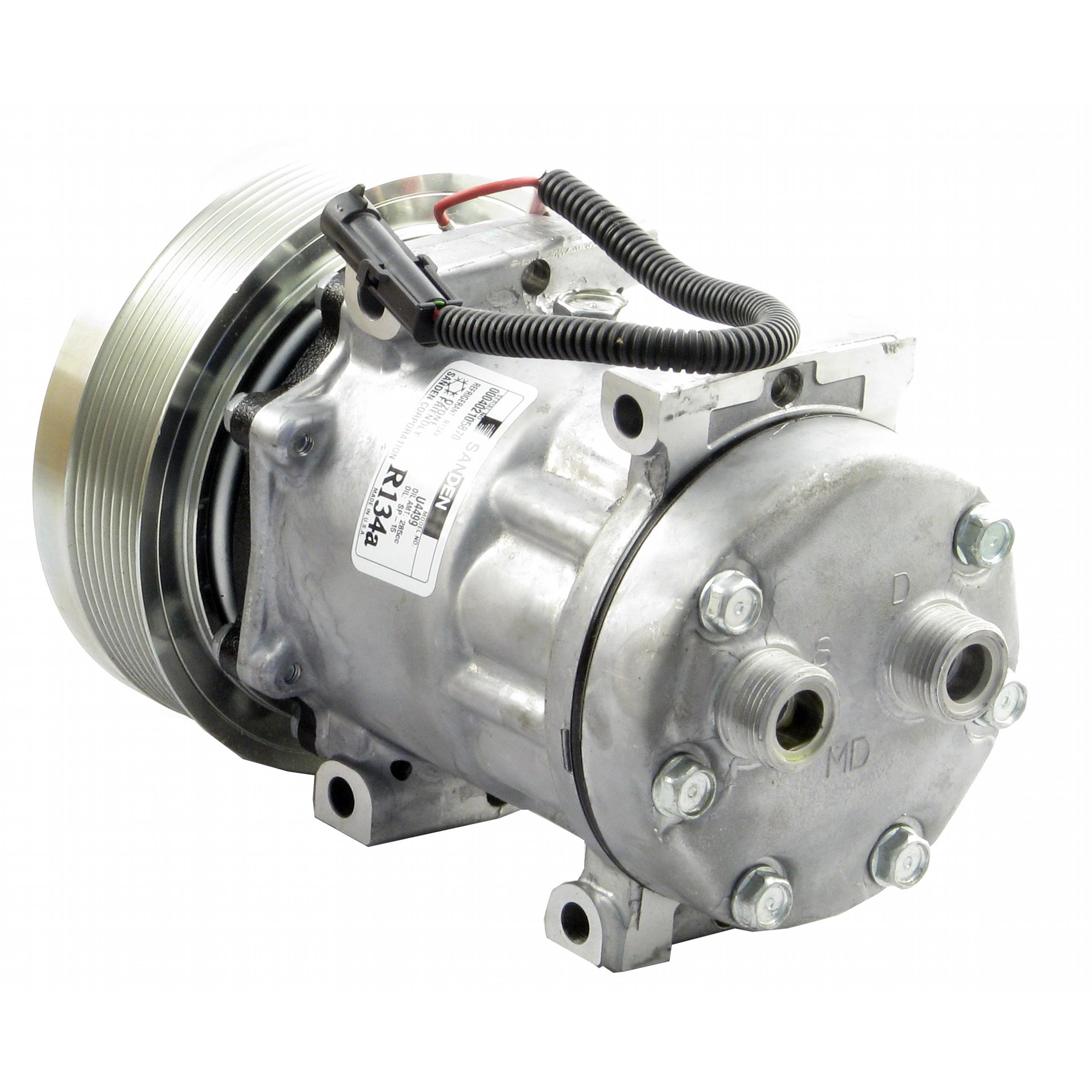

Picture of Sanden SD7H15 Compressor, w/ 8 Groove Clutch - New

Picture of Sanden SD7H15 Compressor, w/ 8 Groove Clutch - New

Sanden SD7H15 Compressor, w/ 8 Groove Clutch - New

Be the first to review this product

Sanden SD7H15 Compressor, w/ 8 Groove Clutch - NewThe 8886993463A Sanden SD7H15 Compressor, w/ 8 Groove Clutch - New fits equipment brands such as: Case, Case IH, Challenger, Gleaner, Massey Ferguson, New Holland, Steiger

Manufacturer: Hy-Capacity

SKU: 8886993463A

$338.42

Qty:

+ -

Notes:

All prices are USD. If imported into Canada/Internationally there will be brokerage costs collected by the carrier. Check the"Canada/World" link at the top of the page for more info. Please note that Hy-Capacity items can not be shipped to Canada / International.

Specifications

Products specifications

Attribute name	Attribute value
Compressor Type	Sanden
Compressor Model	SD7H15 - 4499; 4768
Cylinder Head	MD
Grooves	8
Clutch Diameter	6.00"
Fittings	Horizontal 1" Tube-O
Mount Type	Direct
Coil Position	12:00
Volts	12V
Oil Type	PAG 100 Oil / SP15 (Pre-Filled 9.6 oz.)
Refrigerant	R134A
New/Reman	New
Quality	Aftermarket
Sold As	Each

Products specifications

Attribute name	Attribute value
Compressor Type	Sanden
Compressor Model	SD7H15 - 4499; 4768
Cylinder Head	MD
Grooves	8
Clutch Diameter	6.00"
Fittings	Horizontal 1" Tube-O
Mount Type	Direct
Coil Position	12:00
Volts	12V
Oil Type	PAG 100 Oil / SP15 (Pre-Filled 9.6 oz.)
Refrigerant	R134A
New/Reman	New
Quality	Aftermarket
Sold As	Each

Product tags

4768 (3)
,
47809628 (3)
,
86993463 (3)
,
U4768 (3)
,
U4499 (3)
,
5040786100 (2)
,
71407892 (3)
,
317008A2 (3)
,
4499 (3)
,
504078610 (3)
,
86993463R (3)
,
86992688 (3)
,
317008A3 (3)

Use On Below Models (Click to expand)

Case

Wheel Loader: 1021F 1121F

Case IH

Combine: 6130 7010 7120 7130 7230 8010 8120 8230 9010 9120 9230 AFX7010 AFX8010

Sprayer: 3030 Titan 3040 Titan 3530 Titan 3540 Titan 4030 Titan 4040 Titan 4430 Patriot 4440 Patriot 4530 Titan 4540 Titan 5550 Trident

Tractor: 215 Magnum 235 Magnum 245 Magnum 250 Magnum 255 Magnum 260 Magnum 2654 Magnum 275 Magnum 290 Magnum 305 Magnum 315 Magnum 3154 Magnum 335 Magnum 340 Magnum 370 Magnum 370 Quadtrac 380 Magnum 420 Quadtrac 450 Quadtrac 470 Quadtrac 500 Quadtrac 540 Quadtrac 550 Quadtrac 580 Quadtrac 600 Quadtrac 620 Quadtrac MX210 MX215 MX230 MX245 MX255 MX275 MX285 MX305 STX375 STX380 S/N Z6F100023 - Z6F105001 STX425 Eff. S/N JEE0099501 STX430 S/N Z6F100023-Z6F105001 STX440 STX450 STX480 S/N Z6F100023-Z6F105001 STX500 Eff. S/N JEE0099501 STX530 S/N Z6F100023-Z6F105001

Challenger

Combine: 680B

Gleaner

Combine: A85 Eff. S/N HSC8101 A86

Massey Ferguson

Combine: 9895

New Holland

Combine: CR9040 CR9060 CR9070 CR9080 Yr. 3/09 thru 12/11 CR920 Eff. S/N HAJ100801, w/ Direct Mount Compressor CR940 Eff. S/N HAJ100801, w/ Direct Mount Compressor

Tractor: T8.275 T8.300 T8.320 T8.330 T8.350 T8.360 T8.380 T8.390 T8.410 T8.420 T8.435 T8010 T8020 T8030 T8040 T8050 T9.390 T9.435 T9.450 T9.480 T9.505 T9.530 T9.560 T9.565 T9.600 Tier 4B T9.615 T9.645 Tier 4B T9.670 T9.700 Tier 4B T9030 T9040 T9050 T9060 TG210 TG215 TG230 TG245 TG255 TG275 TG285 TG305 TJ375 TJ380 TJ425 TJ430 TJ450 TJ480 TJ500 TJ530

Steiger

Tractor: 350 370 380 385 420 430 435 450 480 Eff. S/N Z6F105001 485 500 530 535 540 550 580 600 620
